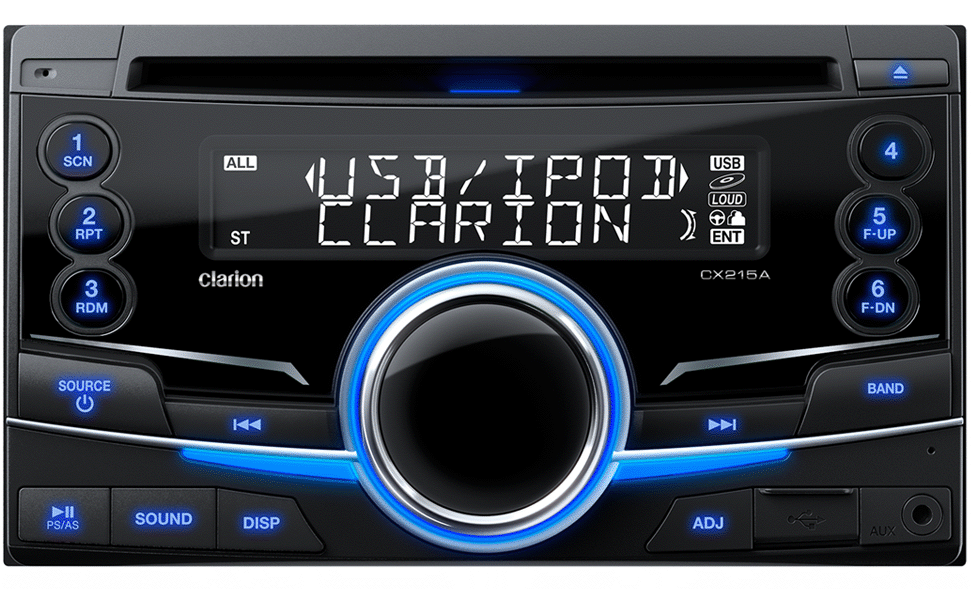

CX215A







       CX215A
       2-DIN CD/USB/MP3/WMA RECEIVER

       Specifications

       MONITOR
      • 13 segment x 8 characters
      • Dual line with TN negative segmented LCD display

       SUPORTED MEDIA
      • CD / iPod / USB / AUX

       AUDIO FEATURES
      • 3-Band Parametric EQ
      • Built-in Low pass / high pass filters
      • 2V / 4-channel audio pre-out

       TUNER SECTION
      • Frequency Bands : FM/AM
      • FM: (MHz) 0.05 MHz steps : 87.5 - 108.0
      • AM: (kHz) 9 kHz steps : 531 - 1629

       USB SECTION
      • USB Ports : 1 (Front)
      • Supported File Format : MP3 / WMA

       CD SECTION
      • S/N Ratio (dB) 1 kHz : 87dB
      • Frequency Response (Hz) : 20 - 20,000
      • Dynamic Range (dB) 1 kHz : 87dB
      • Harmonic Distortion (%) : 0.05%
      • Supported File Format : CDDA / MP3 / WMA

       iPod SECTION
      • Direct iPod Control : Yes via USB
      • FM: (MHz) 0.05 MHz steps : 87.5 - 108.0
      • Simple Control ( Operation from iPod) : NO
      • Video File Browsing and Control : NO

       AUDIO SECTION
      • Power Output : 45W x 4 channel maximum power output

       GENERAL
      • Dimensions (W x H x D) (mm) : 178 x 100 x 166
      • Weight (Kg) : 2.4
      • Power Consumption : less than 15A
      • Power Requirement : 14.4V DC (10.8~15.6V)
      • Speaker Impedance : 4Ω (4Ω to 8Ω allowable)
