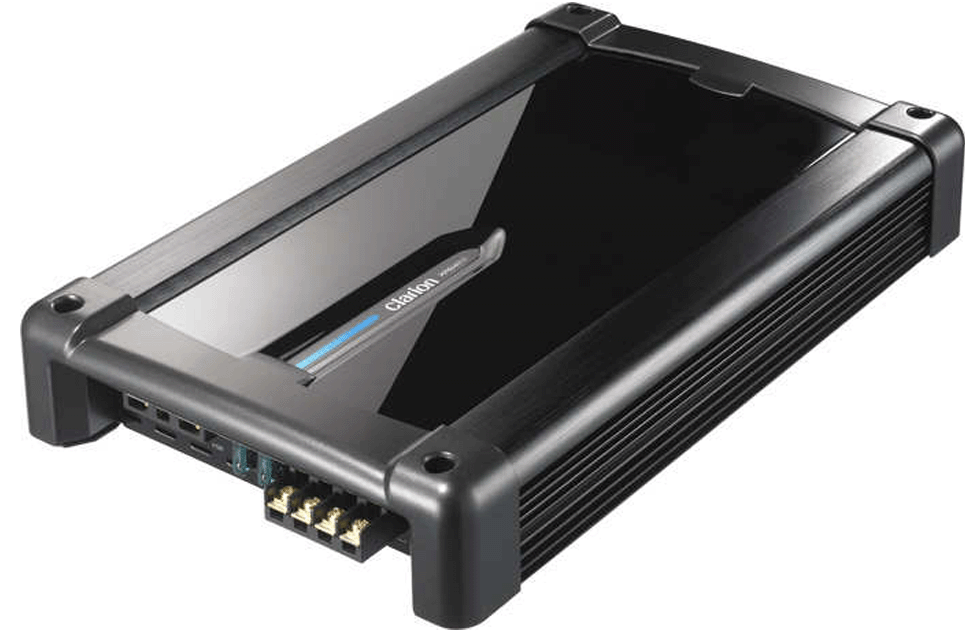

XH5410
680 W 4/3/2 CHANNEL POWER AMPLIFIER

Key Features
• Maximum Power Output : 680W
• Power @ 4-Ohm : 90w × 4
• Power @ 2-Ohm : 160W × 4
• Bridged @ 4-Ohm : 320W × 2
• Input Voltage Selector (I.V.S.) Sensitivity Control
• Precise Frequency Selector (P.F.S.) Crossover Control
• Precise Frequency Selector -18dB /Oct. High/Low Pass Crossover, 50Hz - 575Hz, 525Hz - 5.8kHz
• Number of Channels : 4/3/2
• MOS-FET Power Supply
• 2-Ohm Stereo Stable
• Independent Front / Rear Adjustable - 12db/Oct. High/Low Pass Crossovers, 55Hz-600Hz or 530Hz-5.8kHz with the Crossover Frequency Multiplier
• Variable Bass Boost; 0-15dB @ 45Hz
• Gold Plated Connectors; RCA/ Speaker/ Power
• Speaker Level Input
• Dimensions (W ×L× H) : 373.0 × 230.0 × 67.0 mm
